Description

Insulglass Select^® is an Insulated Glass Unit (IGU) that contains a pyrolytic Low Emissivity glass (LowE). Also known as a “hardcoat”, this range offers multiple applications. Note: Insulglass Select^® Reflective is a sputter coated Solar coating.

Good Insulation (lower U-value), optimised by the use of argon gas which is supplied as standard with all Insulglass Select^® units (may exclude some specialised sizes).

Insulglass Select^® characteristics:

Energy Efficient Insulation (low U-value).
Insulglass Select^{^® Clear} for high Visible Light Transmittance (VLT) to maximise natural light and Passive Heat from the Sun entering inside and filling your space.
Insulglass Select^{^® Neutral} for significantly more blockage of Solar Heat (lower SHGC) and less Glare Factors (lower VLT).
Insulglass Select^{^® Grey} for further blockage of Solar Heat (lower SHGC) and reduction of Glare Factors (lower VLT) while also adding an obvious Grey aesthetic to the glass.
Insulglass Select^{^® Reflective}for the most blockage of Solar Heat of this range, less Glare Factors (lowest VLT) and heightened external Reflections.
Privacy glass options allow the light to enter in but obscure the image.
Laminated glass on the other side adds further safety, security, acoustic performance and over 99% protection against fading factors from harmful Ultraviolet rays (UV).
All glass can be toughened & laminated or laminate used on the other side for Grade A Safety in accordance to AS/NZS 2208.

Note that these traditional coatings (except Insulglass Select^{^® Reflective}) come with the risk of visible haze – see Risk of Haze in Hardcoat LowE Coatings guideline for more detail.

*Comparisons based on centre of glass performance data in NFRC standards between regular 6mm Clear Float Glass and 24mm Insulglass Select^{^® Clear, Neutral, Grey, Reflective}Double Glazed Units of 6/12/6 with argon gas.

Applications

Download Brochure

How to Specify

Prefix:

AGG SELECT Clr, Neut, Gy, Ref
(Clear, Neutral, Grey, Reflective)

Colour (of secondary glass):

eg. Clr (Clear), Gy (Grey), Clr Lam (Clear Laminate)

Make up:

eg. 6/12/6 (External mm / argon spacer mm / Internal mm)

Heat Treatment:

T (Toughened), HS (Heat Strengthened), SOAK (Toughened and Heat Soaked)

Example short name:

AGG SELECT Clr 6/12/6 T

Example long name:

24mm AGG Insulglass Select^{^® Clear}
– 6mm Clear Toughened / 12mm argon / 6mm Select Clear Toughened

Glass thickness available:

Insulglass Select^{^® Clear}: 4mm, 5mm, 6mm, 8mm
Insulglass Select^{^® Neutral, Grey, Reflective}: 6mm

Spacer bar thickness available:

6, 8, 10, 12, 14, 16, 18, 20, 22, 24mm

Minimum size:

350mm x 250mm

Maximum size:

5000mm x 2700mm

Other sizes available upon request, including laminated sizes. Note the required adherence to AS standard maximum size allowances per thickness and application. Tinted glass to go on external pane. Specifications should state the following key required AS standards:

All glass in general to comply with AS 1288.
All Safety Glass to also comply with AS/NZS 2208.
All IGU to also comply with AS 4666.

Insulglass Select^{^® Clear} designed for surface #3 in a standard Double Glazed Unit (DGU).

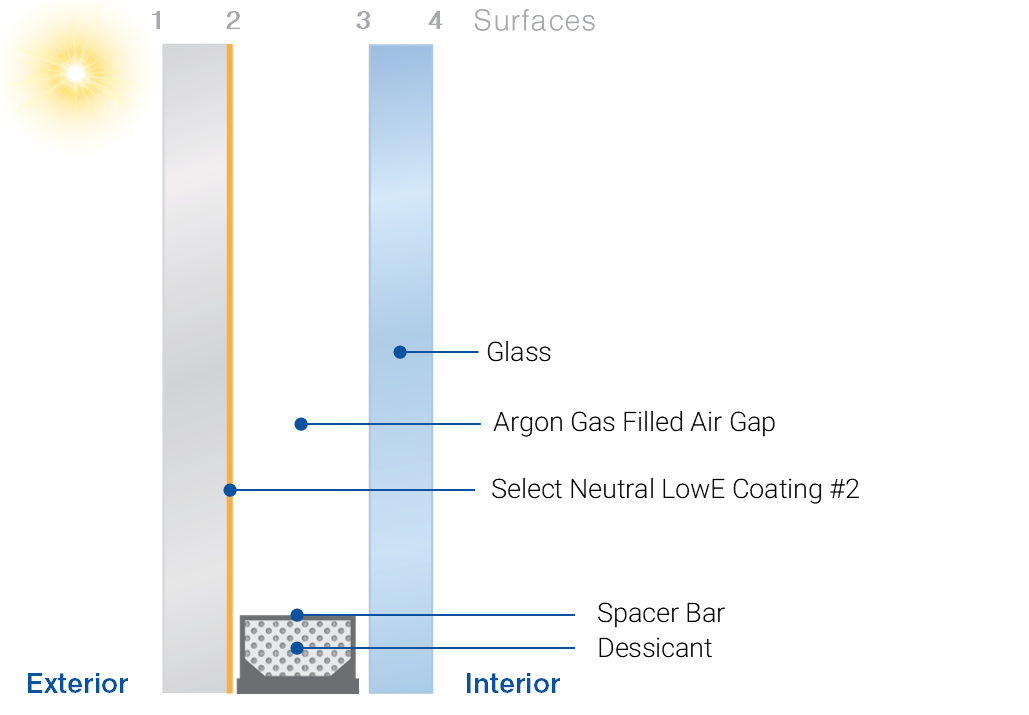

Insulglass Select^{^® Neutral}designed for surface #2 in a standard Double Glazed Unit (DGU).

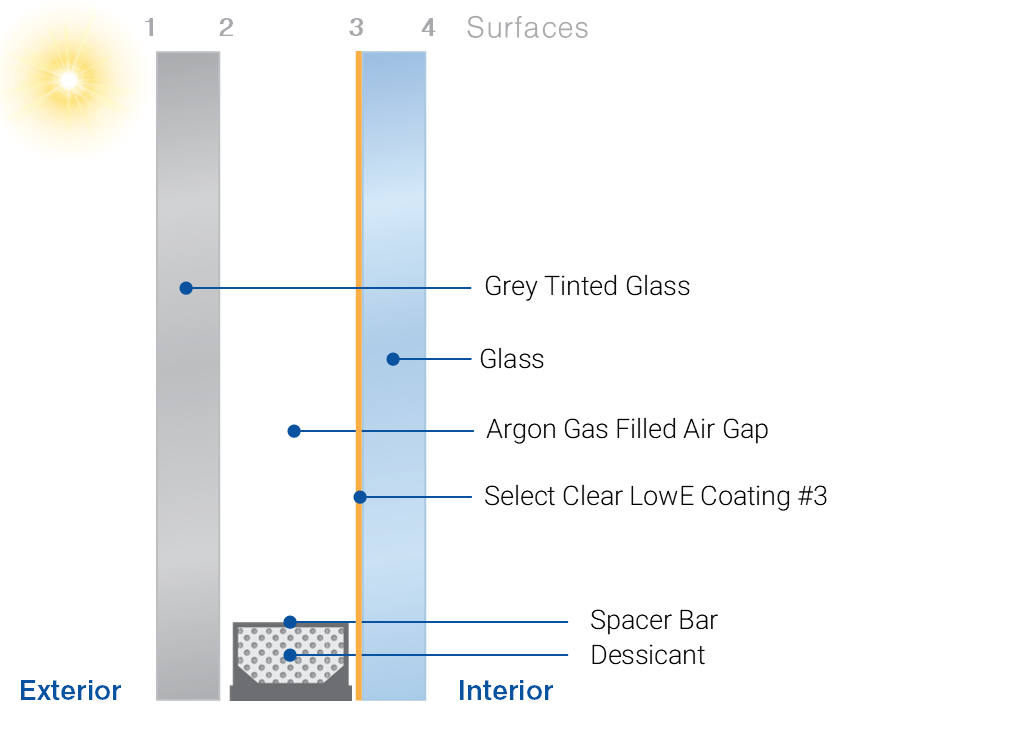

Insulglass Select^{^® Grey}utilises a Grey Tint outer and Select Clear coating inner on surface #3, as tinted glass are designed to be as close to the sun as possible to absorb sun heat, stopping it from entering inside (ie. a lower SHGC).

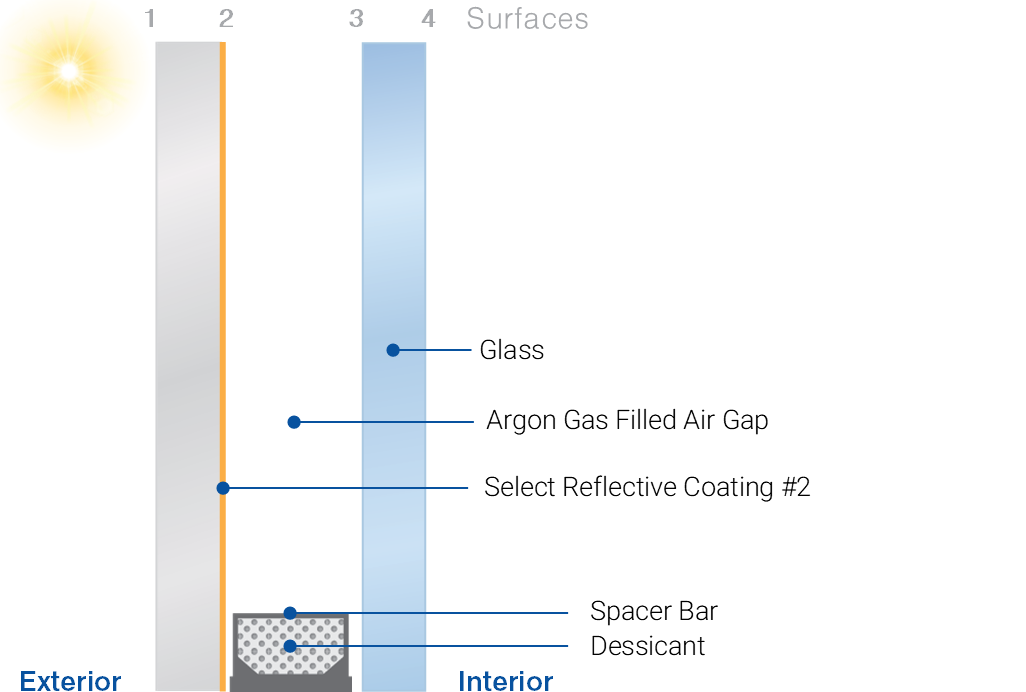

Insulglass Select^{^® Reflective} designed for surface #2 in a standard Double Glazed Unit (DGU).

See cross section diagrams below:

Performance Data

Insulglass Select^® Clear	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
4mm Clear / 12mm argon / 4mm Select Clear	Clear	76	18	17	1.6	0.72	32
5mm Clear / 12mm argon / 5mm Select Clear	Clear	75	18	17	1.6	0.70	33
6mm Clear / 12mm argon / 6mm Select Clear	Clear	75	17	16	1.6	0.69	34
8mm Clear / 12mm argon / 8mm Select Clear	Clear	74	18	17	1.6	0.67	35

Insulglass Select^® Clear – Patterned	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
4mm Pattern / 12mm argon / 4mm Select Clear	Clear Obscure	76	18	17	1.6	0.72	32
5mm Pattern / 12mm argon / 5mm Select Clear	Clear Obscure	75	18	17	1.6	0.70	33
6mm Pattern / 12mm argon / 6mm Select Clear	Clear Obscure	75	17	16	1.6	0.69	34

Insulglass Select^® Clear – Acid Etched	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
4mm Acid Etched / 12mm argon / 4mm Select Clear	Frosted	76	18	17	1.6	0.72	32
6mm Acid Etched / 12mm argon / 6mm Select Clear	Frosted	75	17	16	1.6	0.69	34

Insulglass Select^® Clear – Laminate	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6.38mm Clear Laminate / 12mm argon / 4mm Select Clear	Clear	75	18	17	1.6	0.68	34
6.38mm Clear Laminate / 12mm argon / 5mm Select Clear	Clear	74	18	16	1.6	0.68	36
6.38mm Clear Laminate / 12mm argon / 6mm Select Clear	Clear	74	17	16	1.6	0.68	35
8.38mm Clear Laminate / 12mm argon / 6mm Select Clear	Clear	74	17	16	1.6	0.66	37
10.38mm Clear Laminate / 12mm argon / 6mm Select Clear	Clear	73	17	16	1.6	0.64	37
12.38mm Clear Laminate / 12mm argon / 6mm Select Clear	Clear	73	17	16	1.6	0.62	39
8.38mm Clear Laminate / 12mm argon / 8mm Select Clear	Clear	73	18	17	1.6	0.65	39
10.38mm Clear Laminate / 12mm argon / 8mm Select Clear	Clear	73	17	17	1.6	0.63	38
12.38mm Clear Laminate / 12mm argon / 8mm Select Clear	Clear	72	17	17	1.6	0.61	38

Insulglass Select^® Clear – White Translucent Laminate	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6.38mm WTrans Laminate / 12mm argon / 4mm Select Clear	White Opaque	57	13	16	1.6	0.54	34
6.38mm WTrans Laminate / 12mm argon / 5mm Select Clear	White Opaque	57	13	16	1.6	0.54	36
6.38mm WTrans Laminate / 12mm argon / 6mm Select Clear	White Opaque	57	13	16	1.6	0.54	35

Insulglass Select^® Clear – Audioshield^® Laminate	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6.5mm Audioshield Clear Acoustic Laminate / 12mm argon / 4mm Select Clear	Clear	75	18	17	1.6	0.67	37
6.5mm Audioshield Clear Acoustic Laminate / 12mm argon / 5mm Select Clear	Clear	74	17	16	1.6	0.67	39
6.5mm Audioshield Clear Acoustic Laminate / 12mm argon / 6mm Select Clear	Clear	74	17	16	1.6	0.67	41
8.5mm Audioshield Clear Acoustic Laminate / 12mm argon / 6mm Select Clear	Clear	74	17	16	1.6	0.65	41
10.5mm Audioshield Clear Acoustic Laminate / 12mm argon / 6mm Select Clear	Clear	73	17	16	1.6	0.63	42
12.5mm Audioshield Clear Acoustic Laminate / 12mm argon / 6mm Select Clear	Clear	72	17	16	1.6	0.61	43
8.5mm Audioshield Clear Acoustic Laminate / 12mm argon / 8mm Select Clear	Clear	73	18	17	1.6	0.65	44
10.5mm Audioshield Clear Acoustic Laminate / 12mm argon / 8mm Select Clear	Clear	72	17	17	1.6	0.63	44
12.5mm Audioshield Clear Acoustic Laminate / 12mm argon / 8mm Select Clear	Clear	72	17	17	1.6	0.61	46

Insulglass Select^® Neutral	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6mm Select Neutral / 12mm argon / 4mm Clear	Neutral	56	11	16	1.9	0.45	33
6mm Select Neutral / 12mm argon / 5mm Clear	Neutral	56	11	16	1.9	0.45	34
6mm Select Neutral / 12mm argon / 6mm Clear	Neutral	56	10	16	1.8	0.45	34

Insulglass Select^® Neutral – Patterned	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6mm Select Neutral / 12mm argon / 4mm Pattern	Neutral Obscure	56	11	16	1.9	0.45	33
6mm Select Neutral / 12mm argon / 5mm Pattern	Neutral Obscure	56	11	16	1.9	0.45	34
6mm Select Neutral / 12mm argon / 6mm Pattern	Neutral Obscure	56	10	16	1.8	0.45	34

Insulglass Select^® Neutral – Acid Etched	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6mm Select Neutral / 12mm argon / 4mm Acid Etched	Frosted	56	11	16	1.9	0.45	33
6mm Select Neutral / 12mm argon / 6mm Acid Etched	Frosted	56	10	16	1.8	0.45	34

Insulglass Select^® Neutral – Laminate	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6mm Select Neutral / 12mm argon / 6.38mm Clear Laminate	Neutral	55	11	16	1.8	0.44	35
6mm Select Neutral / 12mm argon / 8.38mm Clear Laminate	Neutral	55	11	16	1.8	0.44	37
6mm Select Neutral / 12mm argon / 10.38mm Clear Laminate	Neutral	54	11	16	1.8	0.44	37
6mm Select Neutral / 12mm argon / 12.38mm Clear Laminate	Neutral	54	11	15	1.8	0.44	39

Insulglass Select^® Neutral – White Translucent Laminate	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6mm Select Neutral / 12mm argon / 6.38mm WTrans Laminate	Neutral Opaque	42	10	12	1.8	0.43	35

Insulglass Select^® Neutral – Audioshield^® Laminate	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6mm Select Neutral / 12mm argon / 6.5mm Audioshield Clear Acoustic Laminate	Neutral	55	11	16	1.8	0.44	41
6mm Select Neutral / 12mm argon / 8.5mm Audioshield Clear Acoustic Laminate	Neutral	55	11	16	1.8	0.44	41
6mm Select Neutral / 12mm argon / 10.5mm Audioshield Clear Acoustic Laminate	Neutral	54	11	16	1.8	0.44	42
6mm Select Neutral / 12mm argon / 12.5mm Audioshield Clear Acoustic Laminate	Neutral	54	11	15	1.8	0.44	43

Insulglass Select^® Grey	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
4mm Grey / 12mm argon / 4mm Select Clear	Grey	47	9	15	1.6	0.52	32
5mm Grey / 12mm argon / 5mm Select Clear	Grey	42	8	14	1.6	0.47	33
6mm Grey / 12mm argon / 6mm Select Clear	Grey	37	7	14	1.6	0.43	34
8mm Grey / 12mm argon / 8mm Select Clear	Grey	28	6	14	1.6	0.36	35

Insulglass Select^® Grey – Patterned	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6mm Select Grey / 12mm argon / 4mm Pattern	Grey Obscure	36	7	15	1.7	0.39	33
6mm Select Grey / 12mm argon / 5mm Pattern	Grey Obscure	35	7	16	1.7	0.38	34
6mm Select Grey / 12mm argon / 6mm Pattern	Grey Obscure	35	7	15	1.6	0.38	34

Insulglass Select^® Grey – Acid Etched	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6mm Select Grey / 12mm argon / 4mm Acid Etched	Grey Frosted	36	7	15	1.7	0.39	33
6mm Select Grey / 12mm argon / 6mm Acid Etched	Grey Frosted	35	7	15	1.6	0.38	34

Insulglass Select^® Grey – Laminated	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6mm Select Grey / 12mm argon / 6.38mm Clear Laminate	Grey	35	7	15	1.6	0.38	35
6mm Select Grey / 12mm argon / 8.38mm Clear Laminate	Grey	35	7	15	1.6	0.38	37
6mm Select Grey / 12mm argon / 10.38mm Clear Laminate	Grey	34	7	15	1.6	0.38	37
6mm Select Grey / 12mm argon / 12.38mm Clear Laminate	Grey	34	7	15	1.6	0.38	39

Insulglass Select^® Grey – White Translucent Laminate	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6mm Select Grey / 12mm argon / 6.38mm WTrans Laminate	Grey Opaque	27	7	11	1.6	0.37	35

Insulglass Select^® Grey – Audioshield^® Laminate	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6mm Select Grey / 12mm argon / 6.5mm Audioshield Clear Acoustic Laminate	Grey	35	7	15	1.6	0.38	41
6mm Select Grey / 12mm argon / 8.5mm Audioshield Clear Acoustic Laminate	Grey	35	7	15	1.6	0.38	41
6mm Select Grey / 12mm argon / 10.5mm Audioshield Clear Acoustic Laminate	Grey	34	7	15	1.6	0.38	42
6mm Select Grey / 12mm argon / 12.5mm Audioshield Clear Acoustic Laminate	Grey	34	7	15	1.6	0.38	43

Insulglass Select^® Reflective	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6mm Select Reflective / 12mm argon / 4mm Clear	Reflective	40	17	13	1.8	0.28	33
6mm Select Reflective / 12mm argon / 5mm Clear	Reflective	39	17	13	1.8	0.28	34
6mm Select Reflective / 12mm argon / 6mm Clear	Reflective	39	17	13	1.8	0.28	34

Insulglass Select^® Reflective – Patterned	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6mm Select Reflective / 12mm argon / 4mm Pattern	Refl Obscure	40	17	13	1.8	0.28	33
6mm Select Reflective / 12mm argon / 5mm Pattern	Refl Obscure	39	17	13	1.8	0.28	34
6mm Select Reflective / 12mm argon / 6mm Pattern	Refl Obscure	39	17	13	1.8	0.28	34

Insulglass Select^® Reflective – Acid Etched	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6mm Select Reflective / 12mm argon / 4mm Acid Etched	Refl Frosted	40	17	13	1.8	0.28	33
6mm Select Reflective / 12mm argon / 6mm Acid Etched	Refl Frosted	39	17	13	1.8	0.28	34

Insulglass Select^® Reflective – Laminated	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6mm Select Reflective / 12mm argon / 6.38mm Clear Laminate	Reflective	39	17	13	1.8	0.28	35
6mm Select Reflective / 12mm argon / 8.38mm Clear Laminate	Reflective	39	17	13	1.8	0.28	37
6mm Select Reflective / 12mm argon / 10.38mm Clear Laminate	Reflective	38	17	13	1.8	0.28	37
6mm Select Reflective / 12mm argon / 12.38mm Clear Laminate	Reflective	38	17	13	1.8	0.28	39

Insulglass Select^® Reflective – White Translucent Laminate	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6mm Select Reflective / 12mm argon / 6.38mm Clear Laminate	Refl Opaque	30	17	10	1.8	0.27	35

Insulglass Select^® Reflective – Audioshield^® Laminate	Colour	VLT%	VLR-Out%	VLR-In%	U-Value	SHGC	Rw
6mm Select Reflective / 12mm argon / 6.5mm Audioshield Clear Acoustic Laminate	Reflective	39	17	13	1.8	0.28	41
6mm Select Reflective / 12mm argon / 8.5mm Audioshield Clear Acoustic Laminate	Reflective	39	17	13	1.8	0.28	41
6mm Select Reflective / 12mm argon / 10.5mm Audioshield Clear Acoustic Laminate	Reflective	38	17	13	1.8	0.28	42
6mm Select Reflective / 12mm argon / 12.5mm Audioshield Clear Acoustic Laminate	Reflective	38	17	13	1.8	0.28	43
